IKEA Toilet EN71 Product Inspection Report- Taizhou Xinhaosheng Plastic Industry Co., Ltd

TAIZHOU XINHAOSHENG PLASTIC INDUSTRY CO., LTD.

ROOM 101, BUILDING 8, INDUSTRIAL PARK, NO. 318, CHENGUANG ROAD, EASTERN NEW DISTRICT, WENLING CITY, ZHEJIANG PROVINCE, CHINA

The following sample(s) was/were submitted and identified by the client as: Sample Description : BABY POTTY

Sample Quantity : 2 PCS

Style/ Item No. : HS-B136

Manufacturer : TAIZHOU XINHAOSHENG PLASTIC INDUSTRY CO., LTD.

Country of Origin : CHINA

Labelled Age Grading : NOT STATED

Requested Age Grading : 6+ MONTHS-6 YEARS

***************

Age Group Applied in Testing : 6+ MONTHS Sample Receiving Date : MAR. 31, 2023

Testing Period : MAR. 31, 2023 TO APR. 07, 2023

Test Requested Result

This is not a toy, the test(s) was applied as per client request. There may be additional hazards and labeling requirements that are not covered by this standard:

EN 71-1:2014+A1:2018 – Safety of toys – Part 1: Mechanical and Physical Properties Pass

COMMISSION IMPLEMENTING DECISION (EU) 2021/1992 on harmonised

standards for toys drafted in support of Directive 2009/48/EC - EN71-3: 2019+A1:2021

- Migration of certain elements

Pass

Since the data and / or information above division line of front page is provided by the applicant, the relevant results or conclusions of this report are only made for these data and / or information, SGS is not responsible for the authenticity, integrity and results of the data and information and / or the validity of the conclusion.

Testing results only apply to the sample as received.

The declaration of conformity is only based on the actual value of laboratory activity while measurement uncertainty of the results is not taken into account.

Signed for and on behalf of

SGS-CSTC Standards Technical Services Co., Ltd. Ningbo Branch

Ruby Gu

Authorized Signatory

Test Conducted:

European Standard on Safety of Toys

EN 71-1:2014+A1:2018 – SAFETY OF TOYS – PART 1: MECHANICAL AND PHYSICAL PROPERTIES

AS SPECIFIED IN EN 71-1:2014+A1:2018 – SAFETY OF TOYS – PART 1: MECHANICAL AND PHYSICAL PROPERTIES

Clauses relevant to the item:

Clause 4 Description General requirements Result

4.1 Material cleanliness** Pass

4.7 Edges Pass

4.8 Points and metallic wires Pass

4.15 Toys intended to bear the mass of a child:

4.15.4 Toys not propelled by a child Pass

5 Toys intended for children under 36 months

5.1 General requirements:

5.1a Small part requirement on toys & removable

Components (Test method 8.2) 5.1b Torque test (Test method 8.3) Pass Pass

Tension test (Test method 8.4) Pass

Drop test (Test method 8.5) Pass

Impact test (Test method 8.7) Pass
Compression test (Test method 8.8)Pass

Sharp edge (Test method 8.11) Pass

5.8 Sharp point (Test method 8.12) Pass
Shape and size of certain toys Pass

** Visual Examination

N.B. : - Only applicable clauses were shown.

Test Part Description：

SN ID	Sample No.	SGS Sample ID	Description
SN1	A1	NGB23-0011021-0001.C001	Grey plastic body
SN2	A2	NGB23-0011021-0001.C002	White plastic body
SN3	A3	NGB23-0011021-0001.C003	Grey soft plastic part

Remarks:

(1) 1 mg/kg = 1 ppm = 0.0001%

(2)MDL = Method Detection Limit

(3)ND = Not Detected (< MDL)

(4)“-“ = Not Regulated

COMMISSION IMPLEMENTING DECISION (EU) 2021/1992 on harmonised standards for toys drafted in support of Directive 2009/48/EC - EN71-3: 2019+A1:2021 - Migration of certain elements (Category III:for scrapped-off toy material)

Test Method: With reference to EN 71-3:2019+A1:2021, analysis was performed by ICP-OES, IC-UV or LC-ICP-MS.

Soluble Organic Tin was analyzed by GC-MS.

Test Item(s) Limit Unit(s) MDL A1 A2 A3

Soluble Lead(Pb) 23 mg/kg 5 ND ND ND

Soluble Antimony(Sb) 560 mg/kg 10 ND ND ND

Soluble Arsenic(As) 47 mg/kg 10 ND ND ND

Soluble Barium(Ba) 18750 mg/kg 50 ND ND ND

Soluble Cadmium(Cd) 17 mg/kg 5 ND ND ND

Soluble Chromium(III)(CrIII) 460 mg/kg 5 ND ND ND

Soluble Chromium(VI)(Cr VI) 0.053 mg/kg 0.025 ND ND ND

Soluble Mercury(Hg) 94 mg/kg 10 ND ND ND

Soluble Selenium(Se) 460 mg/kg 10 ND ND ND

Soluble Boron(B) 15000 mg/kg 50 ND ND ND

Soluble Cobalt(Co) 130 mg/kg 10 ND ND ND

Soluble Manganese(Mn) 15000 mg/kg 50 ND ND ND

Soluble Strontium(Sr) 56000 mg/kg 50 ND ND ND

Soluble Zinc(Zn) 46000 mg/kg 50 ND ND ND

Soluble Copper(Cu) 7700 mg/kg 50 ND ND ND

Soluble Aluminum(Al) 28130 mg/kg 50 ND ND ND

Soluble Nickel(Ni) 930 mg/kg 10 ND ND ND

Soluble Tin(Sn) 180000 mg/kg 3 ND ND ND

Soluble Organic Tin*Conclusion 12 mg/kg - ND Pass ND Pass ND Pass

Notes:

(1)According to the Commission Implementing Decision (EU) 2021/1992 of November 15, 2021, published in the OJEU. The EN 71-3:2019+A1:2021 is adopted as the harmonized standard for toys drafted in support of Directive 2009/48/EC.

(2)According to Chapter of 10.1.2 of EN 71-3:2019+A1:2021, Chromium (III) is calculated by the following formula:

Soluble Chromium (III) = Soluble Total Chromium - Soluble Chromium (VI)

(3)*Confirmation test of soluble organic tin is not required in case of soluble tin, after conversion, does not exceed the soluble organic tin requirement as specified in EN 71-3:2019+A1:2021.

Unless otherwise stated, the decision rule for conformity reporting is based on Binary Statement for Simple Acceptance Rule (w=0) stated in ILAC-G8:09/2019.

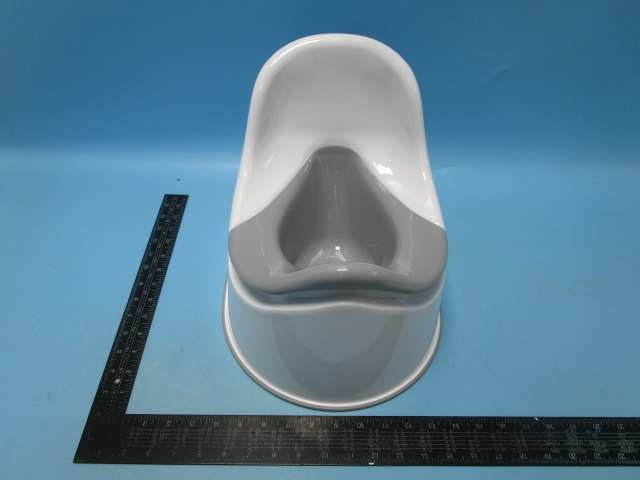

Sample Photo:
